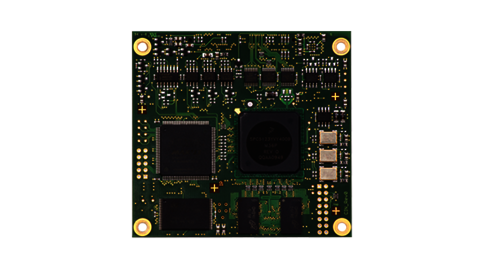

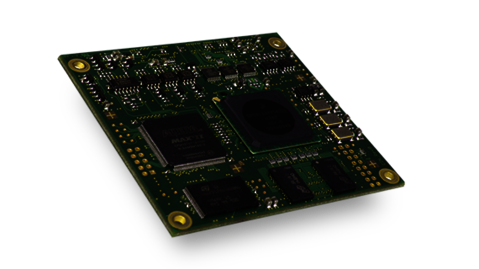

Board variant of the Sontheim CAN adapter as a com­mu­ni­ca­tion so­lu­tion for in­dus­trial sig­nal proces­sing app­li­ca­tions.

Key Features

  • Freescale micro­controller
  • Wide range of interfaces
  • Can be used as a board solution or as a communication centre in the Diag-Box
  • Internal flash and RAM memory
  • Also suitable for harsh environments due to increased temperature range
  • Extensive software support


In addition to a total of four CAN interfaces according to ISO 11898, the CIN has two single-wire CAN channels and eight digital inputs and outputs each. In addition, Ethernet and I²C are integrated for the control of peripheral components. Due to the extremely compact design, the CIN can be mounted as a piggyback variant on a customer-specific circuit board. Ultimately it is also possible to use the device as a gateway/bridge for CAN to Ethernet.

Level measurement
This feature makes it possible to read in the CAN levels analogously and thus, for example, to carry out fault diagnosis on a vehicle or machine. It is especially important when data is lost from the network, which can be caused by short circuits, for example.

Error frame detection
With this feature the CIN is able to take over debugging and diagnosis in a CAN network. The interface has its own logic that detects error frames and counts them in an internal memory. This allows sporadic errors, such as the corruption of messages by a station in the network, to be detected.

Technical Data

CPUFreescale MPC 512x
RAM32 MB, optionally 64 and 128 MB available
Flash16 MB
Ethernet/PHY10/100 Mbit/s
CAN4× CAN transceivers, 1st transceiver with wake-on-CAN function
Bus termination: 120Ω, optionally mounted on circuit board
Diagnosis: Error frame detection on separate FPGA for all channels
Diagnosis: Analog level measurement with simultaneous measurement of CAN high and CAN low
CAN channels are not galvanically isolated
Digital input8×, power supply 3.3 V
Digital output8×, power supply 3.3 V, 10 mA
Single wire CAN
AssemblyCustomized circuit board solution or Diag-Box
Software supportCANexplorer 4, MDT, ODX-Editor, SiECA132 MT API and others on request
Operating temperature–20°C up to +85°C
Storage temperature–40°C up to +85°C
Power supply+UBat (12 V or 24 V), +3.3 V, 5 V
MoreCan also be used as CAN-to-Ethernet bridge/gateway

Related Products

PowerCAN-PCI - High performance card for control and regulation of CAN networks


The PowerCAN-PCI is a high-­performance board for control­ling CAN net­works with two CAN chan­nels. It can be in­stal­led in desk­top PCs and in­dus­trial PCs with PCI slot.

  • PC operates as CANopen manager
  • Transmission performance of 1 Mbit/s at 90% bus load
  • Freescale Coldfire with 32 MHz clock frequency
IPC-4 - Latest industrial PC with scalable performance range


The IPC-4 is suitable for various tasks in auto­ma­tion tech­nol­ogy. More in­di­vi­du­ali­ty and more per­for­mance.

  • Computing power up to 2.16 GHz
  • Very good performance even in harsh environments
  • Suitable for industrial use due to integrated power supply and fan
  • All interfaces accessible from the front

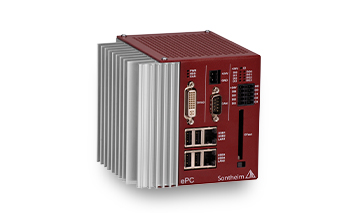

ePC - very compact embedded PC with passive cooling
