- 2× analysis plug, 5× CAN interface acc. to ISO 11898, 1× serial
- Simple cabling
- Cross-plant and multidisciplinary project
- Solid aluminium housing for top hat rail mounting
The Breakout box is used for simple cabling and for the connection of various measurement setups that are to be carried out using the analysis interfaces. It is a cross-factory and cross-departmental Breakout box for vehicles from L6 upwards, where all essential PINs of the analysis plugs 1 and 2 are brought out. Additionally, an adapter cable for the analysis interfaces 1 and 2, a termination cable and a Y-cable for the analysis interface 3 (Flex Ray) are available. The Breakout box offers great advantages due to the easily accessible interfaces. All connections are pluggable and can be connected using banana plugs as well as D-Sub plugs.

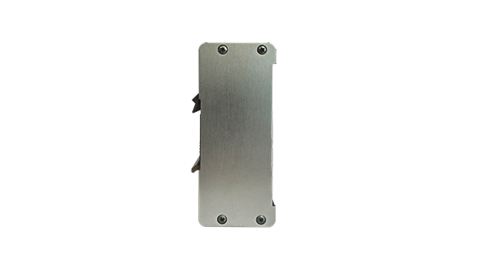

The module itself is made of robust aluminium and has a device for top hat rail mounting.

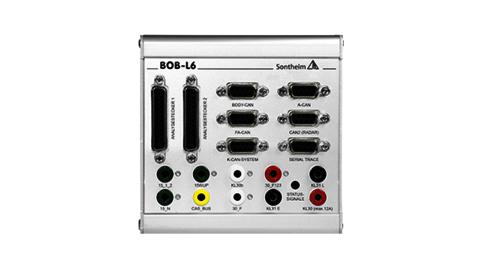

The interfaces are all on the front panel, which allows fast and clear cabling. A total of five CAN interfaces according to ISO 11898 are available. In addition, D-Sub25 sockets are provided for the analysis plugs. The serial trace interface is implemented via D-Sub9. In addition to the D-Sub sockets, 10 banana sockets are available for signal contacting, which are equipped with a green LED as soon as a connection is established.
|Analysis plug||2× Analysis socket, D-Sub25|
|CAN||5× CAN interface acc. to ISO 11898, D-Sub9|
|Serial Trace||1× serial interface, D-Sub9|
|Dimensions (l×w×h)||121 mm × 120 mm × 81,5 mm|
|Weight||ca. 400 g|
|Operating temperature||0°C up to +60°C|
|Storage temperature||–20°C up to +70°C|
|Humidity||90 % non-condensing|
