IoT Device Manager - cloud based platform
IoT Device Manager - cloud based platform

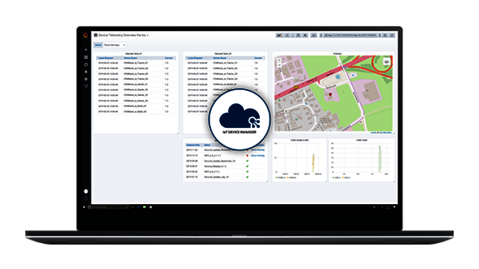

IoT Device Manager

Cloud-based platform for man­aging your de­vices in the field

Key Features

  • Management of all telematics units
  • Drag and drop
  • Over-the-air-updates
  • Simple configuration of all devices
  • Fast data consumption analysis
  • Live data monitoring

Description

The IoT Device Manager is a cloud-based tool for the simple and clear management of your tele­matics units in the field. You can group and structure your devices by drag and drop and man­age soft­ware pack­ages for wireless over-the-air updates.

Collect live data during vehicle operation or flash soft­ware wirelessly:

  • Mobile networks (2G/3G/LTE)
  • WLAN


Store telemetry data for further analysis and sup­port the following functions:

  • QA statistics
  • Usage statistics
  • Planning of service intervals
  • Vehicle lifecycle support

Store telemetry data and check information such as

  • SIM card number (IMSI)
  • Serial number of the LTE device
  • Last connection to the server
  • Signal quality
  • Network bandwidth
  • Device configuration

The IoT Device Manager can be hosted on a server on the Sontheim side or seamlessly integrated into an existing customer infra­struc­ture. Secure data transfer is ensured thanks to SSL/TLS certi­fi­ca­tion and can even be extended according to individual customer requirements. The IoT Device Manager can be branded OEM-specific. This allows the user to create dif­ferent user levels, for viewing with dif­ferent rights or for easy inte­gra­tion of sub­supplier views.

Technical Data

CPU32-bit controller, SPC 5123 400 MHz
RAM32 MB up to 256 MB
Memory16 MB up to 16 GB NAND-Flash-Memory
CAN3× CAN interface acc. to ISO 11898 (opt. 4× CAN)
Ethernet1× Ethernet, 10/100 Mbit
WLAN1× IEEE 802.11 b/g/n
IOsOptional 2× DI, 1× DO
Operating systemRTOS (μC/OS-II) or Linux
Connector18 pin plug suitable for mobile use
Dimensions (l×w×h)approx. 130 mm × 124 mm × 38 mm
Protection class housingIP69K
Weight375 g
Power Supply6–32 V DC
Operating temperature–40°C up to +85°C
Storage temperature–40°C up to +85°C
