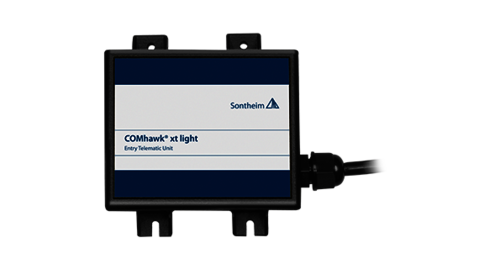

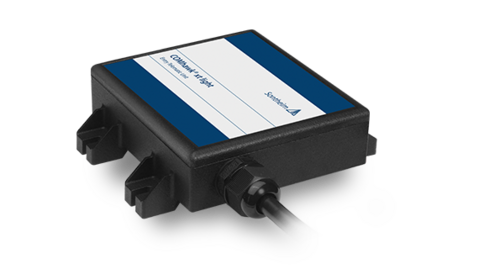

COMhawk® xt light

Low-cost IoT gateway with CAN in­ter­face and J1939 protocol sup­port

Key Features

  • 1× CAN interface acc. to ISO 11898 with J1939 Protocol Support
  • GNSS
  • 2G/LTE
  • FOTA (Flash-over-the-air)
  • Protection class IP67
  • SIM card externally exchangeable

Description

Interfaces and positioning
The new COMhawk® xt light has one CAN interface with J1939 protocol support. A 2G/LTE mobile radio connection is a­vail­able for wire­less data ex­change. This can be used to run FOTA app­li­ca­tions, which can be man­aged by our IoT Device Manager. Two FAKRA plugs provide an easy and secure an­tenna con­nec­tion. Add­it­io­nally, the COMhawk® xt light is equip­ped with a GNSS receiver for positioning.

Wide range of applications
COMhawk® xt light can be used in various applications of mobile machines, but also in sta­tio­nary machines. From a simple IoT gate­way, which transmits the recorded operating data wirelessly, to a central communication, telemetry and diagnostic gateway, the range of applications is wide. The extended temperature range from –30°C to +70°C and the compact housing with IP67 pro­tec­tion guarantee com­pre­hen­sive pro­tec­tion. The embedded operating system also offers a simple and optimal basis for creating OEM applications without increased effort and costs.



Technical Data

CPU32-bit microcontroller
CAN1× CAN interface acc. to ISO 11898
Further protocolsJ1939
2G/LTEGSM/GPRS/EDGE/LTE
GNSSoptional GPS, GLONASS, Beidou
Antenna connectionexternal via FAKRA
HousingIP67
Dimensions (l×w×h)approx. 120 mm × 111 mm × 34 mm
Weight260 g
Operating temperature–30°C up to +80°C (higher temperature class on request)
Storage temperature–40°C up to +85°C
Power supply6–32 V DC
