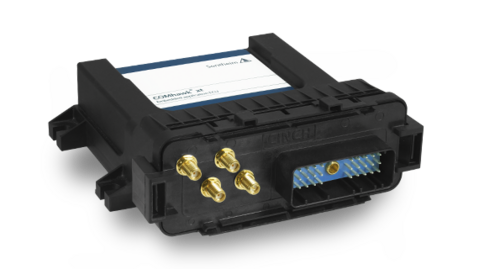

COMhawk® xt

Embedded application ECU for te­le­me­try and dia­gnos­tic app­li­ca­tions

Key Features

  • Powerful ARM Cortex A9
  • 2× CAN interface acc. to ISO 11898 (opt. 4× CAN)
  • GNSS
  • 2G/LTE
  • WLAN acc. to IEEE 802.11 b/g/n
  • 1× Ethernet, 10/100 Mbit/s
  • 1× BroadR-Reach
  • Data logging
  • IP69K and vibration protected
  • Linux

Description

Housing and interfaces
The new COMhawk® xt has two CAN in­ter­faces and one Ethernet connection. Wi-Fi, optional Blue­tooth and a 2G/LTE mobile connection are available for wireless data ex­change. In addition, the COMhawk® xt is op­tio­nally equipped with a GNSS re­cei­ver for po­si­tio­ning. Further equipment options in­clude one 3-axis acceleration sensor, a tem­pe­ra­ture sensor and a digital input. The data can be stored on an internal memory of up to 64 GB, or transferred directly to a cloud sys­tem for further processing.

Wide range of applications
COMhawk® xt can be used in various applications of mobile machinery. From the simple data logger that wirelessly trans­mits the recorded operating data, to acentral com­mu­ni­ca­tion, te­le­me­try and dia­gnos­tic gate­way that combines various com­mu­ni­ca­tion standards. The ex­ten­ded temp­er­a­ture range from –20°C to +70°C and the com­pact housing with protection class IP69K ensure com­pre­hen­sive pro­tec­tion even under ex­treme vi­bra­tions and tem­per­a­tures. The Linux operating system also offers a simple and optimal basis for creating OEM app­li­ca­tions without increased effort and costs.

Technical Data

CPU32-bit microcontroller, Cortex-A9 (single/dual core)
RAM512 MB up to 1 GB
Memory4 GB up to 64 GB eMMC NAND Flash
CAN2× CAN interface acc. to ISO 11898 (optional up to 4× CAN)
Ethernet1× Ethernet, 10/100 Mbit/s
2-Wire-Ethernet1× BroadR-Reach, 1000 BASE-T1
WLAN1× IEEE 802.11 b/g/n; client and accesspoint mode
GNSSoptional GPS/GLONASS, Galileo, BaiDou, QZSS
2G/3G/LTEoptional GSM/GPRS/EDGE/UMTS/HSPA/LTE
3-Axis-acceleration sensoroptional up to ±24g
Temperature sensoroptional
IOs1× DO or 1×AO (more on request)
Plug30-pole automotive plug (chinch)
Antenna connectionexternal, FAKRA or SMA
Operating systemLinux
HousingIP69K
Dimensions (l×w×h)approx. 130 mm × 124 mm × 38 mm
Weightapp. 375 g
Operating temperature–20°C up to +70°C (higher temperature class on request)
Storage temperature–40°C up to +85°C
Power supply6–32 V DC, incl. load dump protection
