iMX6

The ultra energy-saving Computer-on-Module offers an optimal price-performance ratio. Scal­able buil­ding blocks en­able cus­to­mized mobile and net­work­ed embed­ded solutions based on ARM technology

Key Features

  • Freescale i.MX6 (Solo, dual, quad core, 800 MHz)
  • Up to 4 GB DDR3 memory
  • Onboard 10/100/1000 Mbit LAN
  • Numerous interfaces,
    e.g. 3× USB 2.0, 3× PCIe
  • Extended temperature range
  • Evaluation board on-demand

Description

Scalable performance and compact form factor

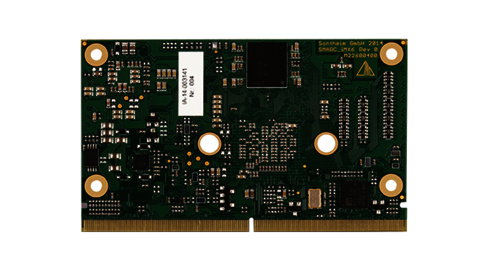

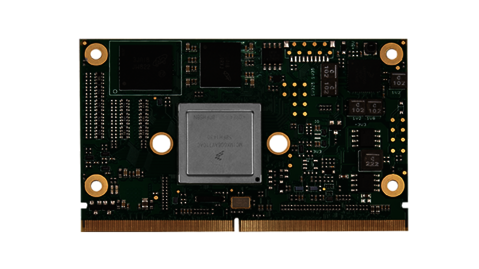

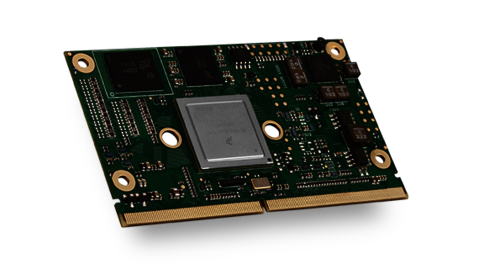

The iMX6 board from Sontheim is based on a 314-pin MXM 3.0 connector and standard dimensions of 82 mm × 50 mm. This creates extremely compact, durable and cost-ef­fec­tive development op­por­tu­ni­ties for mobile em­bed­ded hand­held sys­tems and small por­table, stationary and in-vehicle de­vices that can be used in a wide range of applications.



Designed for commercial and industrial temp­erature range
In addition to the normal one, the iMX6 board is also designed for the extended in­dus­trial tem­per­ature range from –40°C to +85°C. This opens up a wide range of app­li­ca­tions in the field of autom­ation, medical tech­nology and other work­ing en­vir­on­ments that do not correspond to the commercial temperature range and also entail harsh en­vir­on­mental con­di­tions. In ad­dition, an evaluation board is al­ready available on request.

Technical Data

Hardware
CPUFreescale i.MX6
Solo, dual and quad core ARM Cortex-A9
800 MHz, 1 GHz and 1.2 GHz
GraphicDual display
HD 1080p encoded and decoded
2D and 3D speed-up
RAMDDR2 or DDR3 up to 4 GB
Memoryup to 64 GB NAND/eMMC on-module (customized)
USB3× USB 2.0
Ethernet10/100/1000 Mbit LAN
DisplayParallel LCD 18/24 bit
LVDS single channel 18/24 bit
HDMI
Image capture interface2 interfaces (PCAM, CSI)
Serial interfaces2× RX/TX (Ser 1/3); 2× UART (Ser 0/2)
Further interfacesup to 3× PCIe, MLB150, 12× GPIOs, SDIO, SATA eMMC, 2× SPI, 5× I²C, 2× I²S,
SPDIF WDT, 2× CAN, battery and system management
Operating system supportLinux
Windows embedded compact 7 (on request)
Android (on request)
Operating temperature0°C up to +60°C, extended area: –40°C up to +85°C
DimensionsSMARC standard: 82 mm × 50 mm
