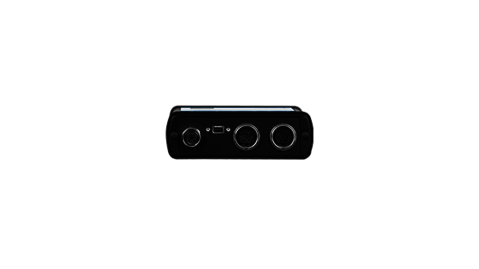

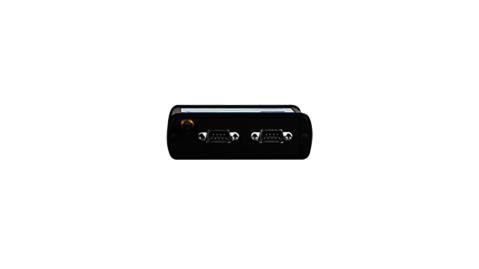

COMfalcon®

Extremely flexible CAN interface with num­erous inter­faces and po­wer­ful PowerPC. Ideal for use in de­vel­op­ment, pro­duc­tion and service app­li­cations

Key Features

  • 4× independent CAN interface
  • WLAN interface
  • RS232, RS422, RS485, K-Line
  • Protocol handling
  • Optional with data logging, scripting, CAN voltage level oscilloscope functionality
  • Optional with integrated SD card
  • Compact housing with protection class IP65

Description

Housing and status display
The interface has a robust aluminium housing with protection class IP65. Due to the compact design and the high shock resistance COMfalcon® can be used in different areas of the automation and automotive industry. Two 14-segment displays and nine LEDs always indicate the current operating status/error code of the device.

Interfaces
COMfalcon® has four CAN interfaces in total and is based on the CAN interface CIN with Freescale PowerPC architecture. The con­nec­tion to the diagnostic PC is established via WLAN/LAN. In addition to the CAN chan­nels, various other inter­faces such as RS232, RS422, RS485 or K-Line are available for diagnostic purposes.

Error frame detection
With this feature COMfalcon® is able to take over the trou­ble­sho­oting and dia­gno­sis in a CAN network. The inter­face has its own logic, which de­tects error frames and counts them in an inter­nal memory. Thus sporadic errors, such as the fal­si­fi­ca­tion of mes­sages by a par­ti­ci­pant in the network, can be detected.

ID related level measurement – resistance meas­ure­ment/current measurement
This feature enables the CAN levels to be read in IO-related as well as active and passive ter­mi­nation re­sis­tors to be measured and thus, for example, to carry out fault diagnosis on a vehicle or machine. This is par­ti­cu­lar­ly im­por­tant if data is lost from the network, which can be caused by short cir­cuits, for example.

Technical Data

CPUFreescale PowerPC
RAM64 MB
Memory16 MB (for data logging optionally up to 128 MB)
CAN4× CAN interface acc. to ISO 11898
Baud rates50 Kbit/s up to 1 Mbit/s
CAN termination resistance measurementTerminating resistor of the vehicle CAN network with active bus
CAN Port2× 7-pole M16 port (like Sontheim CANUSB-2)
RS232D-Sub9 Plug A
Serial multiplex interfaceD-Sub9 Plug A
5 different serial interfaces, changeable via software
K-/L-LineK-/L-Line (acc. to ISO 9141-2, ISO 14230-4)
Baud rate up to 56 kBaud/s
RS485EIA/TIA-485 compatible
Baud rate up to 10 Mbit/s
no integrated termination resistor
RS422ANSI/TIA/EIA-422 compatible
Baud rate up to 10 Mbit/s
no integrated termination resistor
LANM12 4-pin female connector
100 Mbit LAN, D-coded
WLAN1× acc. to IEEE 802.11g, up to 54 Mbit/s
14-segment displayBoot-information, K-line mode, RS-mode, measurement, error codes
LEDsPower LED (green);
LAN status LED (green and yellow);
WLAN status LED (green and yellow);
4× CAN status LED (green and yellow);
2× RS status LED (green and yellow)
Dimensions (l×w×h)110 mm × 150 mm × 35 mm
HousingAluminium, protection class IP65
Storage temperature–40°C up to +85°C
Operating temperature–20°C up to +60°C
Power Supplya.) 6 up to 32 V DC with load-dump protection;
b.) via USB V = 5 V, IMAX < 500 mA (with Mini-B-USB connection)
