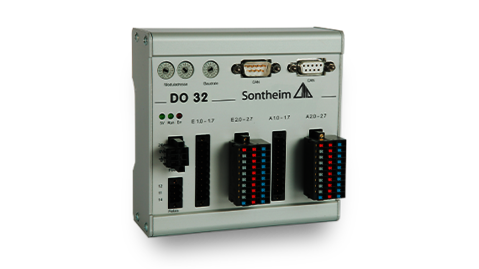

DO32

Digital 24 V or 12 V module with 32 outputs for use in CAN networks

Key Features

  • Safety features for high running safety
  • Galv. isolated CAN interface acc. to ISO 11898
  • Easy access to all interfaces
  • Own intelligence for complex CAN networks
  • All clamps pluggable and lockable
  • Signal delay of less than 400 μs
  • Galv. isolated inputs
  • Compact aluminium housing with IP20 and integrated top hat rail mounting

Description

Housing and interfaces
The module has a compact aluminium housing and offers the possibility for top hat rail mounting. The interfaces are quickly and con­ve­nien­tly avail­able on the front panel. Using the 3-wire connection technology, all sensors can be connected directly to the module. The danger of incorrect wiring is greatly reduced by the color coding of the po­ten­tials, even for less ex­per­i­enced users. Various clamp strips are available, which are op­tio­nal­ly equip­ped with LEDs. All inputs are indicated by an LED on the clamp. In ad­dition, both the baud rate and the module address can be set and read at any time using hex switches.

CAN interface
The integrated CAN interface in accordance with CANopen (DS 301 and 401) allows flex­ible use at dif­fer­ent points and positions in the production process. It is designed acc­or­ding to ISO 11898.

Signal processing
In addition to the inputs, our digital IO has a powerful microcontroller that handles the ac­qui­si­tion of the sensors and the CAN protocol. Further­more, security mechanisms such as guar­ding are fully in­te­gra­ted in the remote IO.

Power supply
The DO32 is supplied with 24 V. The in­te­gra­ted reverse polarity protection pre­vents possible de­struc­tion of the mo­dule if the sup­ply voltage is in­cor­rectly app­lied. The con­trol section is ad­dit­io­nally pro­tec­ted against short over­vol­tage peaks by an EMC circuit on the supply voltage.

Technical Data

Hardware
CPU16-bit microcontroller
CAN1× CAN interface acc. to ISO 11898, galv. isolated
Connection with D-Sub9 plug and socket (bridged);
Assignment acc. to DIN 41652
CAN protocolDS 301 and 401
Number of modules/bus127
Settingof module address via 2 HEX switches
of baud rate via HEX switch
Connection systemSpring connection,
Clamping range 0.25 – 1.5 mm², solid wire “e”
fine wire “f” 0.25 – 1.5 mm², “f” with wire end ferrule
without plastic collar 0.25 – 1.5 mm²
Connection technologyTwo-wire and three-wire connection, stripping length 10 mm
Operating status display1× LED green for power supply (5 V)
1× LED green für operating mode (run)
1× LED red for error status (err)
32× LED green for set outputs (directly at the clamp)
Dimensions (l×w×h)121 mm × 120 mm × 48 mm
Weight600 g
Protection classIP20, EMC requirements acc. to CE
Storage temperature–30°C up to +70°C
Operating temperature0°C up to +60°C
Humidity90 % non-condensing
Power supply24 V DC ±20 %
All in- and outputs active, including LEDs440 mA
Digital outputs
Number of outputs32
Power24 V DC ±20 %
Circuit typeFET-Highside switch
Potential isolationOptocoupler
Output current/output1 A (short circuit proof)
Total current of the module8 A
Total current of the module with blockwise supply32 A
Switching frequency1 kHz
Freewheel diodesYes, controlled inductors require external freewheel diodes
Signal delay< 100 μs
Relay contact (switches, when Module active)1× UM / 1A
