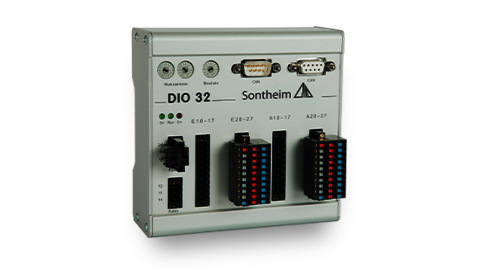

DIO32
Digital 24 V or 12 V module with each 16 in- and outputs for use in CAN networks
Key Features
- Safety features for high running safety
- Galv. isolated CAN interface acc. to ISO 11898
- Easy access to all interfaces
- Own intelligence for complex CAN networks
- All clamps pluggable and lockable
- Signal delay of less than 400 μs
- Galv. isolated inputs
- Compact aluminium housing with IP20 and integrated top hat rail mounting
Description
Housing and interfaces
The module has a compact aluminium housing and offers the possibility of top hat rail mounting. The interfaces are quickly and conveniently available on the front panel. Using the 3-wire connection technology, all sensors can be connected directly to the module. The danger of incorrect wiring is greatly reduced by the color coding of the potentials, even for less experienced users. Various clamp strips are available, which are optionally equipped with LEDs. All inputs are indicated by an LED on the clamp. In addition, both the baud rate and the module address can be set and read at any time using hex switches.
CAN interface
The integrated CAN interface in accordance with CANopen (DS 301 and 401) allows flexible use at different points and positions in the production process. It is designed according to ISO 11898.
Signal processing
In addition to the inputs, our digital IO has a powerful microcontroller that handles the acquisition of the sensors and the CAN protocol. Furthermore, security mechanisms such as guarding are fully integrated in the remote IO.
Power supply
The DIO32 is supplied with 24 V. The integrated reverse polarity protection prevents possible destruction of the module if the supply voltage is incorrectly applied. The control section is additionally protected against short overvoltage peaks by an EMC circuit on the supply voltage.
Technical Data
| Hardware | |
|---|---|
| CPU | 16-bit microcontroller |
| CAN | 1× CAN interface acc. to ISO 11898, galv. isolated Connection with D-Sub9 plug and socket (bridged); Assignment acc. to DIN 41652 |
| CAN protocol | DS 301 and 401 |
| Number of modules/bus | 127 |
| Setting | of module address via 2 HEX switches of baud rate via HEX switch |
| Connection system | Spring connection, Clamping range 0.25 – 1.5 mm², solid wire “e” fine wire “f” 0.25 – 1.5 mm², “f” with wire end ferrule without plastic collar 0.25 – 1.5 mm² |
| Connection technology | Two-wire and three-wire connection, stripping length 10 mm |
| Operating status display | 1× LED green for supply voltage (5 V) 1× LED green for operating mode (run) 1× LED red for error status (err) 16× LED green for set inputs 16× LED green for set otputs (directly at the clamp) |
| Dimensions (l×w×h) | 121 mm × 120 mm × 48 mm |
| Weight | 600 g |
| Protection class | IP20, EMC requirements acc. to CE |
| Storage temperature | –30°C up to +70°C |
| Operating temperature | 0°C up to +60°C |
| Humidity | 90 % non-condensing |
| Power supply | 24 V DC ±20 % |
| All in- and outputs active, including LEDs | 500 mA |
| Digital inputs | |
|---|---|
| Number of inputs | 16 |
| Switching level “1” | +15.0 V up to +28.8 V |
| Switching level “0” | 0.0 V up to +8.0 V |
| Potential isolation | Optocoupler |
| Input current/input | 11 mA |
| Sampling frequency (Fg) | 2.5 kHz |
| Signal delay | < 400 μs |
| Digital outputs | |
|---|---|
| Number of outputs | 16 |
| Power | 24 V DC ±20 % |
| Circuit type | FET-Highside switch |
| Potential isolation | Optocoupler |
| Output current/output | 1 A (short circuit proof) |
| Total current of the module | 8 A |
| Total current of the module with blockwise supply | 16 A |
| Switching frequency | 1 kHz |
| Freewheel diodes | Yes, controlled inductors require external freewheel diodes |
| Signal delay | < 100 μs |
| Relay contact (switches, when module active) | 1× UM / 1 A |
